AUTHORS
Cyril Ramathal1*, Kiran Saini2*, Zhouyang Lian2*, Christian Corona2, Tiffine Pham2, Ryan Carelli2, Stephane C. Boutet2, Manisha Ray2, Sunantha Sethuraman1; Vivian Prindle1, Evelyn Lattmann3, Maria-Grazia Molvetti3, Andreas Dzung3, Mitchell P. Levesque3, Matt Barnes1, Andreja Jovic2
AFFILLIATIONS
- Abbvie, 1 North Waukegan Road, North Chicago, IL 60064, USA
- Deepcell, 3925 Bohannon Drive, Menlo Park, CA 94025, USA
- University of Zurich, University of Zurich Hospital, Faculty of Medicine, Department of Dermatology, Wagistrasse 18, Schlieren, Switzerland
The Challenge: Identifying Drug-Resistant Cancer Cells
One of the biggest challenges in cancer treatment is drug resistance. While chemotherapy and targeted therapies have transformed oncology, tumors often develop resistance mechanisms, rendering these treatments ineffective. Detecting these resistant cells early is crucial, yet conventional approaches—such as molecular profiling and single-cell RNA sequencing—are expensive, time-consuming, and often destructive to the cells, preventing further study.
In a recent study conducted in collaboration with a leading biopharmaceutical company, we demonstrate how deep learning applied to high-resolution brightfield imaging can classify drug-resistant cancer cells based on morphology alone—without the need for labels, fluorescent markers, or complex sample preparation. Using Deepcell’s REM-I platform, this approach enables non-destructive, high-throughput identification of resistance phenotypes at the single-cell level, opening new possibilities for cancer research and precision oncology.
How Deep Learning Enables Label-Free Classification

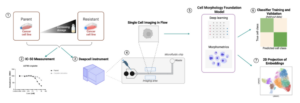

The study leveraged REM-I’s high-resolution imaging capabilities and deep-learning-based analysis to profile drug resistance across multiple cancer types and treatments. The workflow involved:
- Brightfield Imaging of Cancer Cells: High-resolution images of individual cells were captured without staining or labeling.

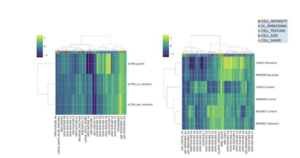

- AI-Driven Feature Extraction: Deep learning models extracted hundreds of morphological features, such as shape, size, texture, and pigmentation.
- Training a Drug Resistance Classifier: A machine-learning model was trained on resistant and drug-naive cancer cells across six different cancer lines.

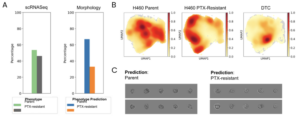

- Validation with Patient-Derived Samples: The classifier was applied to a dissociated tumor biopsy from a lung cancer patient, achieving results that closely mirrored single-cell RNA sequencing analysis.
Morphological Signatures of Drug Resistance
A major insight from the study was that drug resistance leaves distinct visual fingerprints on cancer cells:

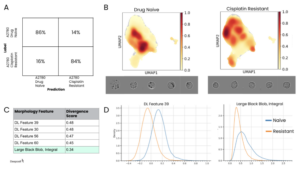

- Structural and Texture Changes: Resistant ovarian cancer cells exhibited fewer “black blob” features, likely reflecting lysosomal alterations.
- Size and Pigmentation Differences: Some melanoma cells resistant to MEK inhibitors appeared larger or showed increased pigmentation, hinting at shared biological pathways in drug resistance.
- Cross-Drug Morphological Overlap: Cells exposed to different therapies developed similar morphological changes, suggesting common resistance mechanisms.
- Clinical Validation: In a proof-of-concept experiment, the AI classified cells from a lung cancer biopsy, achieving results comparable to single-cell RNA sequencing.
Implications for Cancer Research and Precision Medicine
The ability to distinguish drug-resistant cancer cells purely by morphology has significant implications for oncology and drug discovery:
- Non-Destructive Drug Resistance Profiling: Unlike molecular methods, which often require cell fixation or destruction, this approach allows for live-cell sorting and further functional studies.
- Scalable and High-Throughput: REM-I’s automated imaging and AI-driven analysis provide a faster and more scalable alternative to molecular assays.
- Potential for Clinical Integration: By applying this technology to patient samples, researchers can explore real-time drug resistance monitoring and personalized treatment adjustments.
A New Frontier in Morphology-Based Cancer Profiling
For decades, pathology has relied on visual assessments of tissue morphology to diagnose disease. Now, with AI-powered image analysis and Deepcell’s REM-I platform, we can extend this concept to single-cell resolution—deciphering cancer’s hidden morphological changes at an unprecedented scale.
This study highlights the potential of deep learning to enhance non-destructive, label-free drug resistance profiling, complementing traditional molecular approaches and providing new insights into cancer biology. As this technology advances, it could play a critical role in precision oncology—enabling treatment decisions that adapt to each patient’s evolving tumor landscape.
